KONE ProSpace - For Buildings Without an Elevator

Product information


The KONE ProSpace™ is a highly space-efficient elevator that can be installed in the stairwell of almost any building. This compact solution requires very little headroom and pit space, while the self-supporting shaft means the elevator can be installed without any major alterations to the building’s existing structures. KONE ProSpace fullfils the requirements of the European elevator standards EN81-20 and EN81-50.


  • Description: space-efficient elevator solution for residential buildings without an elevator
  • Speed: 0.6 m/s
  • Max. travel: 30 m
  • Max. load: 675 kg
  • Max. persons: up to 9
  • Max. elevators in group: 1


  • Wide range of door options, including swing and fire-rated doors

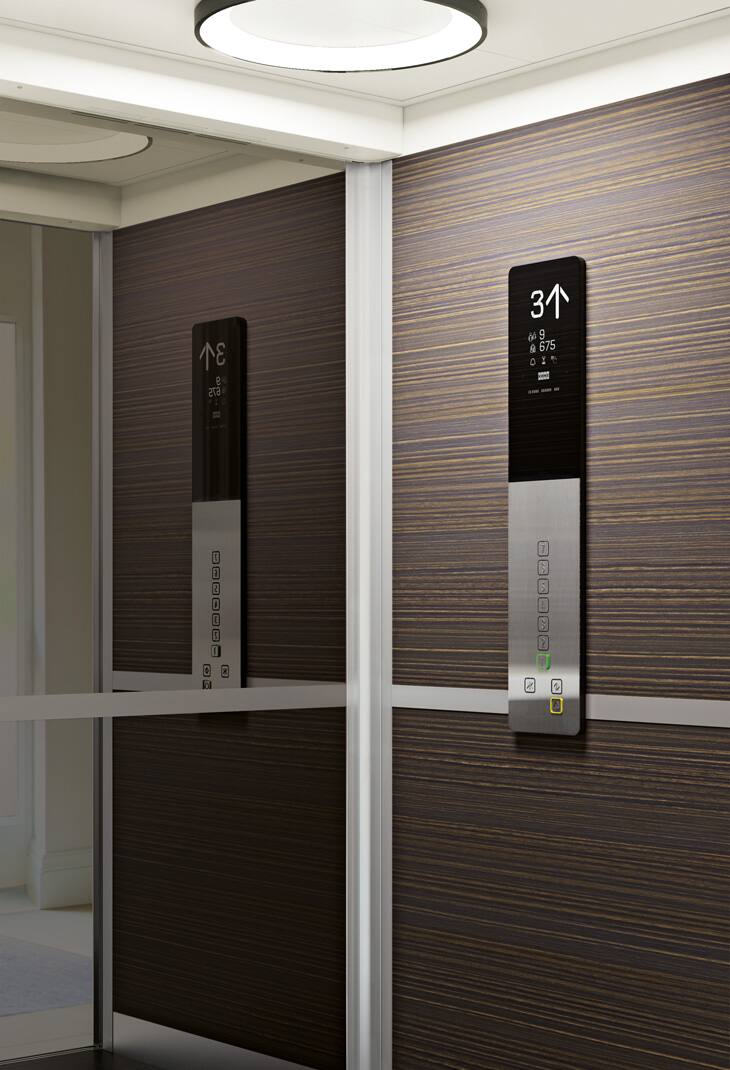

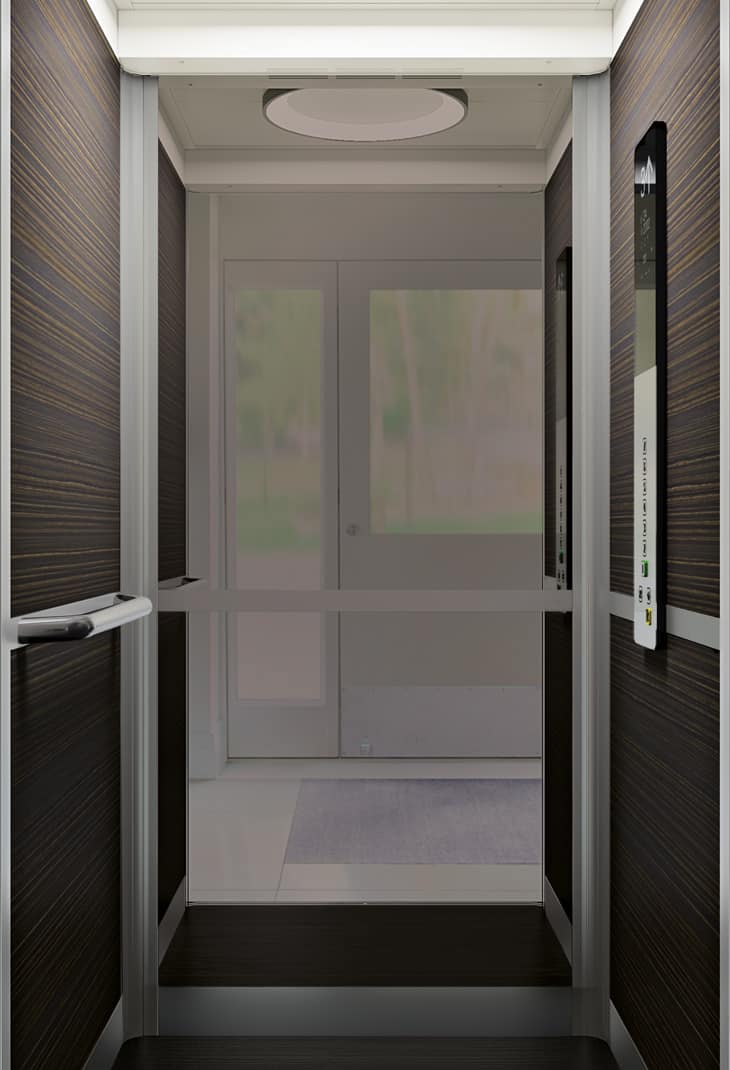

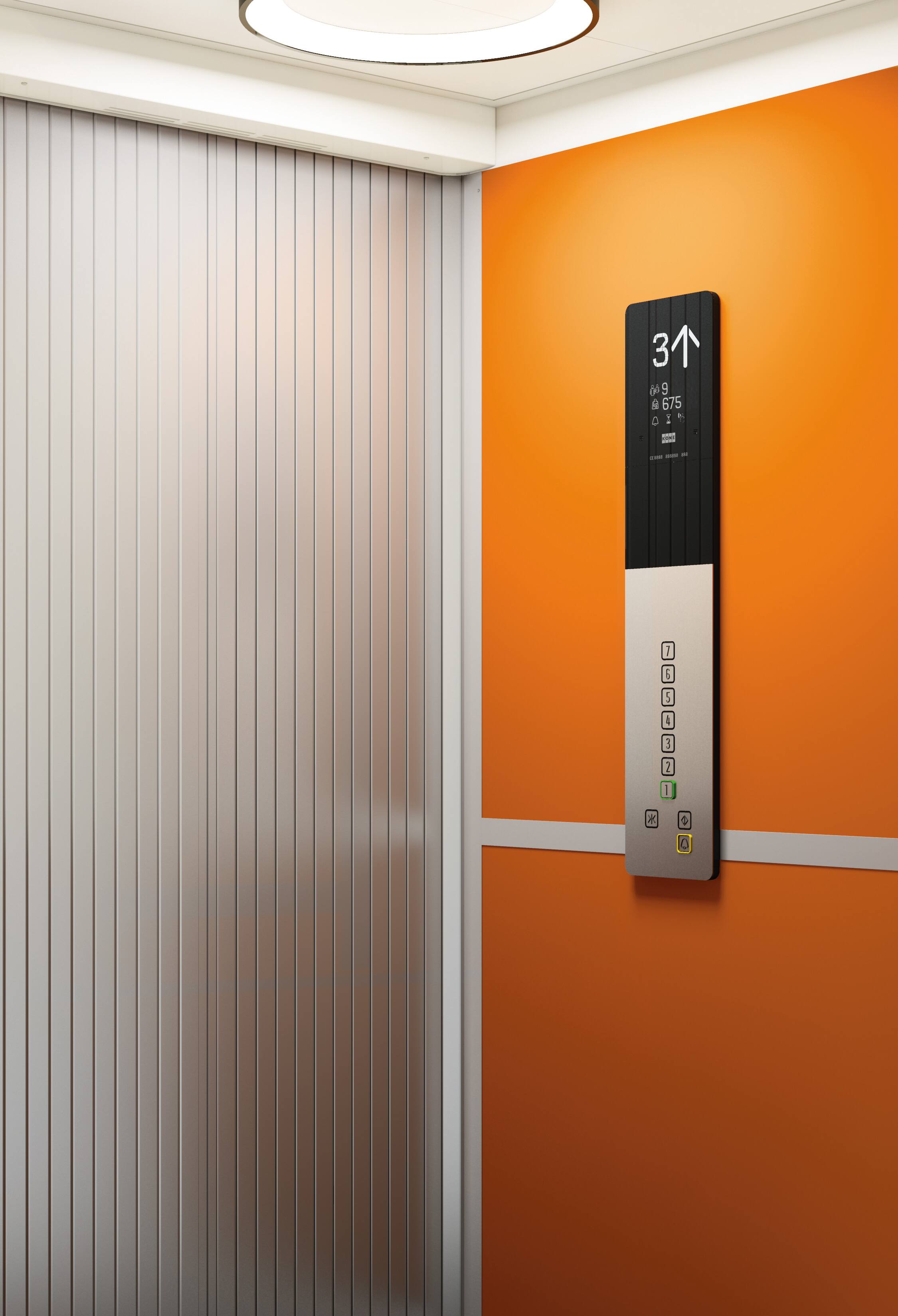

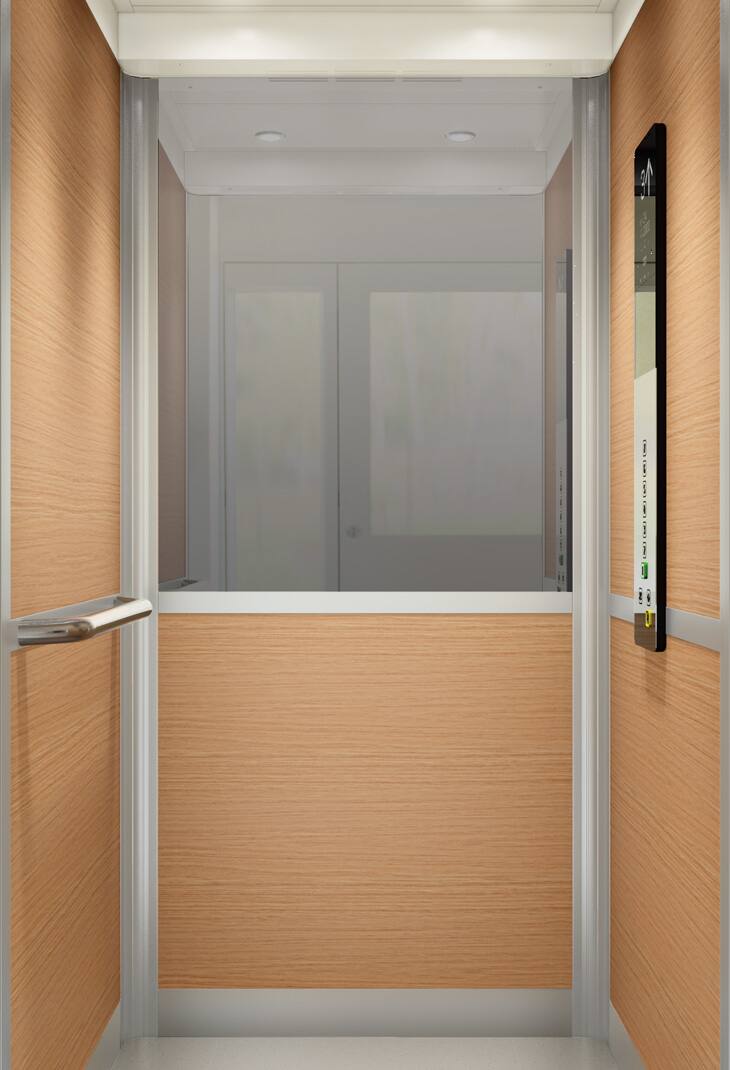

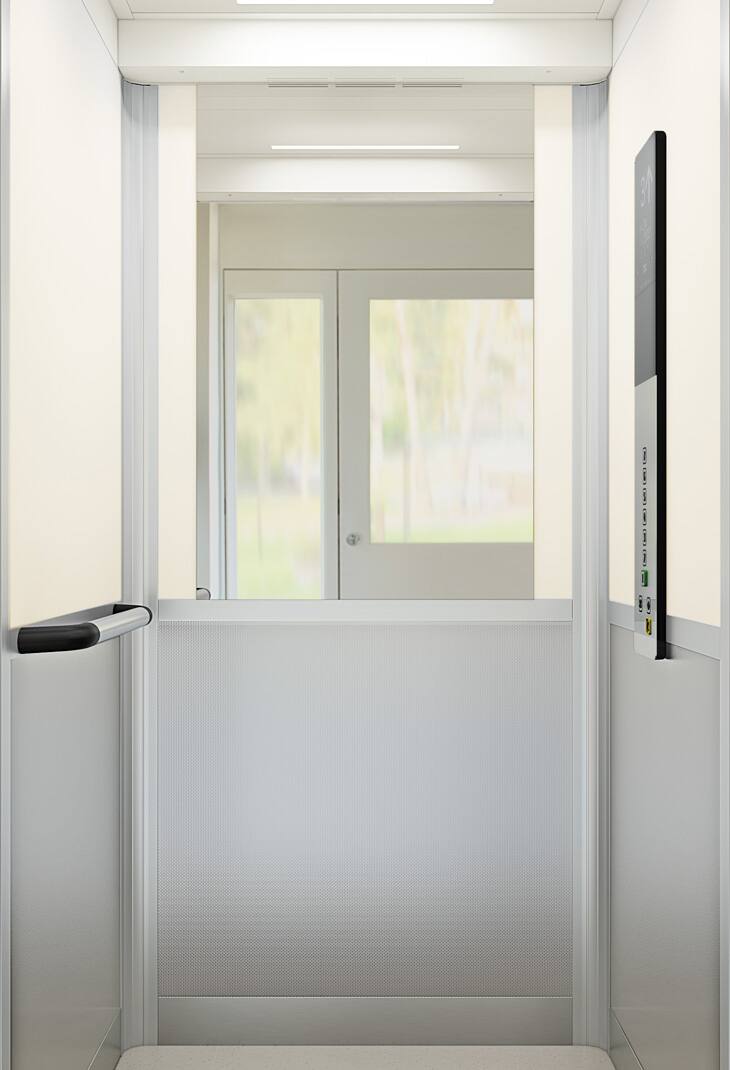

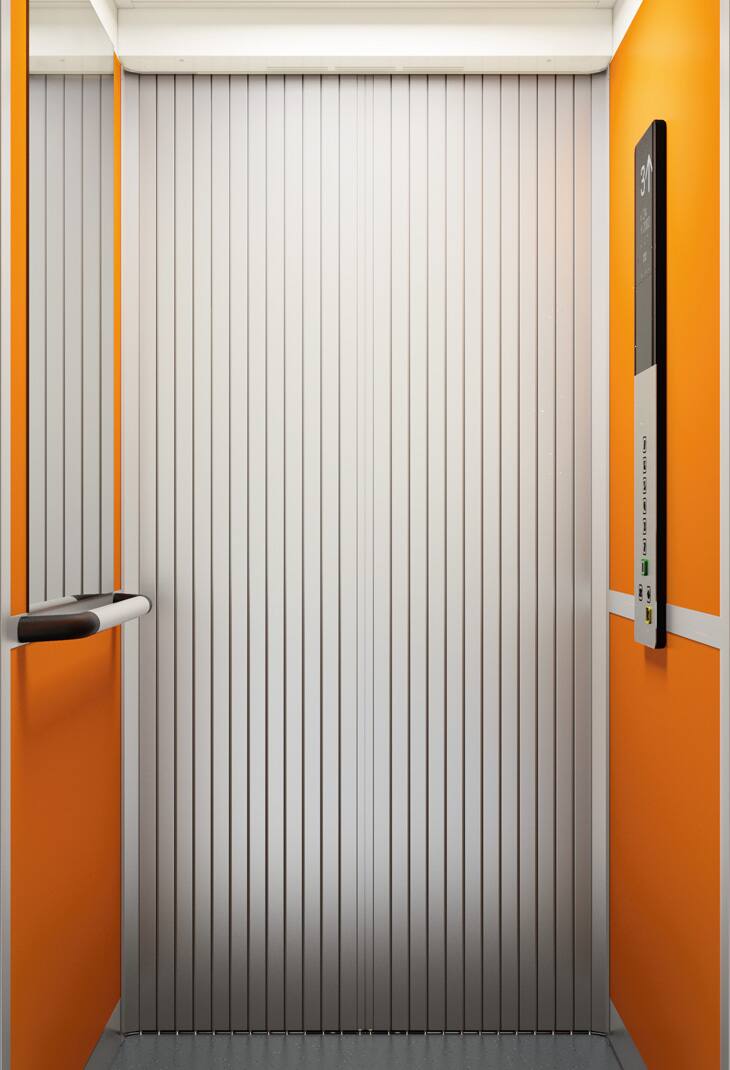

  • Several wall, floor, and accessory options
  • Custom designs also available

Tools and downloads

KONE Elevator Toolbox

Save time in the planning and design phase by specifying your elevator solution online and creating a detailed specification as well as customized CAD drawings BIM models.

KONE Car Designer

With our digital design tool you can create your own unique elevator car interior by combining materials, lighting, and accessories – and then bring your vision to life with 3D modelling.

KONE Planulator™

A handy tool for architects and consultants to quickly compare the space required by our different elevator systems. Elevator dimension plans can be printed direct from the tool.

KONE Quick Traffic

A quick and easy way to get an initial estimate of the number of elevators required for a project, based on a range of different building parameters.

KONE ProSpace™ brochure

The KONE ProSpace is a complete elevator solution that can be installed in virtually any building. This space-efficient solution is designed to be installed in the stairwell.
