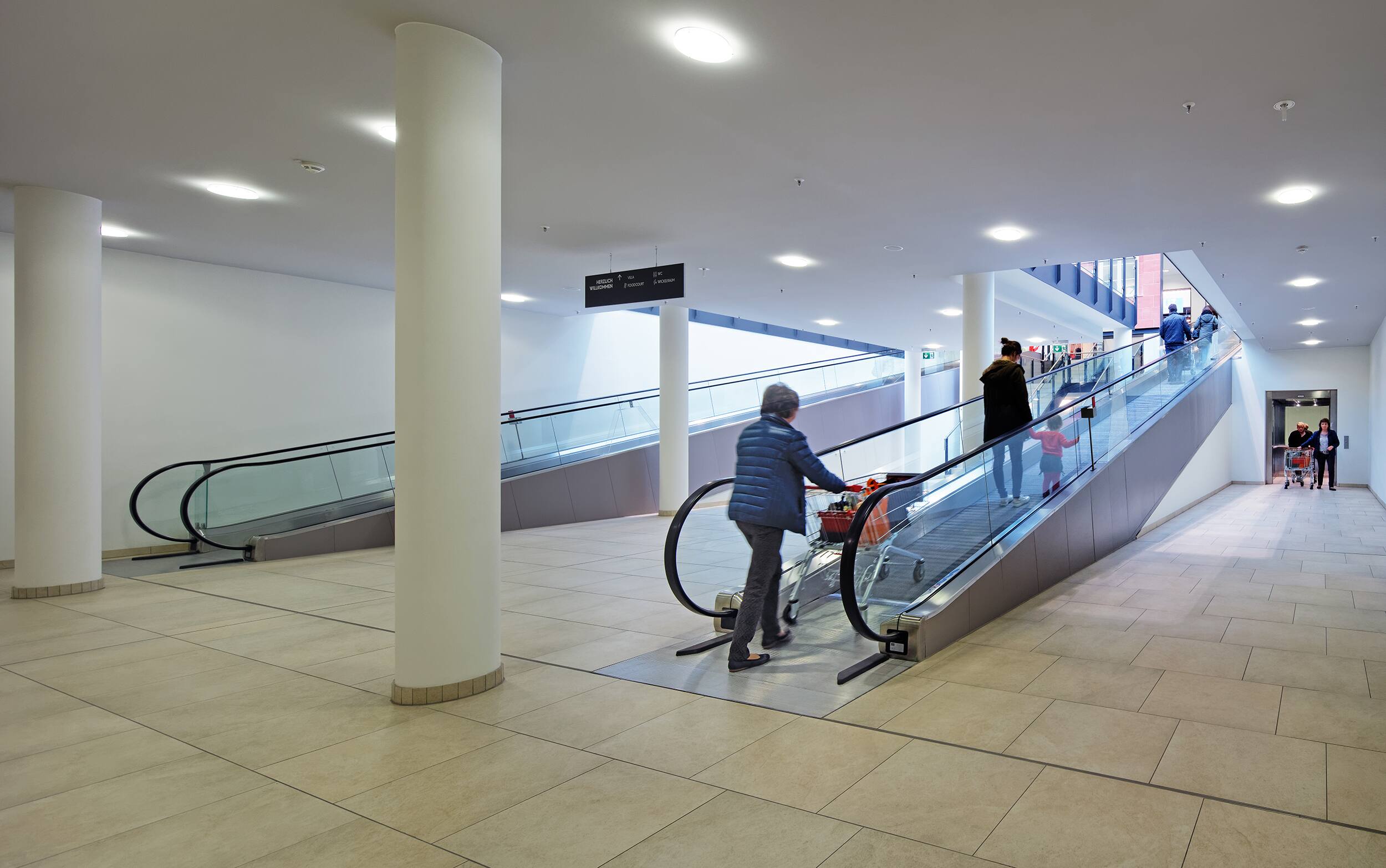

Inclined Autowalk Details


The KONE TravelMaster™ 115 is an inclined autowalk that provides easy and safe retail access for environments with demanding people flow needs, such as when you need an autowalk for shopping centers, department stores, supermarkets or hypermarkets.

Equipment Specifications

  • Operational environment: indoor, semi-outdoor

  • Speed: 0.5 m/s

  • Inclination: 10º, 12º

  • Pallet width: 1000 mm

  • Vertical rise: up to 7 m

Inclined Autowalk Safety

  • Safety is the starting point for every KONE escalator and moving walk escalator. The KONE TravelMaster™ 115 inclined autowalk conforms to all local and international safety codes.

  • We offer extensive passenger security options to reduce the risk of end-user accidents.

KONE Tools and Downloads

More tools and downloads

Inclined Autowalk Options and Highlights

Travelmaster 115


Energy-efficient people flow that keeps your building moving:

  • Smart operational modes and inverters optimize inclined escalator average energy consumption under different load conditions

  • Long-lasting LED lighting is up to 80% more efficient than fluorescent lighting and lasts up to 10 times longer

  • An energy-efficient inverter provides smooth motor speed regulation during standby operation and minimizes energy consumption at full speed

  • The optional regenerative technology cuts equipment power consumption by recycling energy and feeding it back into the system

Travelmaster 115


Peace of mind with the latest equipment safety technology:

  • A high (1100 mm) balustrade improves escalator safety with a multiple-level inclined automatic walkway layout

  • The pallet loose property monitor and Sprialock threaded screw increase escalator safety for passengers and reliability on our pallets

  • New traffic signalization solutions to provide extra guidance

  • Fall-prevention barriers and extended balustrades provide additional passenger protection

  • Extensive monitoring options such as KONE Remote Monitoring™ and KONE E-link™ to integrate with your integrated building management systems

Travelmaster 115


Proven, reliable inclined escalator design to provide safe people flow management and maximum availability in environments with medium to high traffic:

  • Reduced escalator standard dimensions free up more space for commercial activities

  • Real inclinations allow for better inclined autowalk alignment and enhanced visual building appearance

  • Flexible intermediate placement support that allows easier integration within the building

  • Innovative and attractive inclined autowalk commercial lighting solutions that also improve passenger guidance and escalator passenger safety

  • A wide range of inclined escalator truss design options to create stunning visual effects and perfectly match your building’s architecture

  • High-quality equipment component finishes and a harmonized look and feel throughout the KONE product portfolio

Contact us for a detailed cost estimate

Related topics


Our easy-to-understand planning guide gives you all the information you need when planning an escalator or walking escalator solution, including guidance on building planning regulations and property safety codes.

Product Name Type Segment Maximum Rise Speed Inclination KONE TransVario Direct Drive Available 24/7 Connected Services Available Energy- Efficiency Class
KONE TravelMaster 110 Escalator Commercial, retail, hotel, office, multi-use, stadium, medical 13m 0.5 m/s 30°, 35°
Yes A+++
KONE TravelMaster 115 Inclined autowalk Commercial, retail, hotel, office, multi-use, stadium, medical 7m 0.5 m/s 10°, 12°
Yes A+++
KONE TransitMaster 120 Escalator Infrastructure 20m 0.5, 0.65, 0.75 m/s 27.3°, 30°, 35°
Yes A+++
KONE TransitMaster 140 Escalator Infrastructure 35m 0.5, 0.65, 0.75 m/s 27.3°, 30°
Yes A+++
KONE TransitMaster 165 Horizontal Autowalk Infrastructure 100m 0.5, 0.65, 0.75 m/s 0-6°
Yes A+++
